Tutorial 1: Budget-Based Analysis#

This tutorial analyzes 2 years of grocery data from 2,222 households using revealed preference methods.

Topics covered:

Data preparation and BehaviorLog construction
GARP consistency testing
Power analysis (Bronars test)
Efficiency metrics (CCEI, MPI, Houtman-Maks)
Preference structure (separability, cross-price effects)
Lancaster characteristics model

Prerequisites#

Python 3.10+
Basic familiarity with NumPy and pandas
Understanding of basic statistics (means, correlations)

Note

The full code for this tutorial is available in the case_studies/dunnhumby/ directory of the PrefGraph repository.

Important Assumptions#

Revealed preference tests rely on several core assumptions regarding the stability and rationality of decision-making. For a formal delineation of these assumptions and their implications, see:

Theoretical Foundations - Formal assumptions (Stability, Utility Maximization, etc.)

Real data typically violates these to some degree, which affects interpretation:

Assumptions in Practice (Grocery Data)#
Assumption	Grocery Data Reality	Concern Level
Stable preferences	Household tastes change over 2 years	Medium
Single decision-maker	Household, not individual	Medium
Category homogeneity	“Milk” aggregates all milk products	Medium

What GARP Failure Means#

GARP failure means no single, stable utility function rationalizes the observed choices. For common causes and behavioral interpretations, see Axiomatic Consistency Tests.

Part 1: The Data#

The Dunnhumby “The Complete Journey” dataset contains 2 years of grocery transactions from approximately 2,500 households. We focus on 10 product categories.

Dataset Overview#
Metric	Value
Households analyzed	2,222
Product categories	10 (Soda, Milk, Bread, Cheese, Chips, Soup, Yogurt, Beef, Pizza, Lunchmeat)
Time period	2 years
Aggregation	Monthly (24 observations per household)

Aggregation Choice#

Transactions are aggregated to monthly observations:

Weekly data is too sparse (many zero-purchase periods)
Monthly aligns with household budgeting cycles
Reduces noise from random shopping timing

pip install prefgraph[viz]

# Download the Dunnhumby dataset (requires Kaggle API)
cd dunnhumby && ./download_data.sh

Part 2: Building BehaviorLogs#

A BehaviorLog stores a sequence of choice observations:

Prices: Price vector at time of choice
Quantities: Quantity vector chosen

import numpy as np
from prefgraph import BehaviorLog

# For a single household: 24 months, 10 products
prices = np.array([
    [2.50, 3.20, 2.10, 4.50, 3.00, 1.80, 2.90, 8.50, 5.00, 6.20],  # Month 1
    [2.45, 3.30, 2.15, 4.40, 2.90, 1.85, 3.00, 8.20, 5.10, 6.00],  # Month 2
    # ... more months
])

quantities = np.array([
    [2.0, 1.5, 3.0, 0.5, 1.0, 2.0, 1.0, 0.5, 0.0, 0.5],  # Month 1
    [1.5, 2.0, 2.5, 0.5, 1.5, 1.5, 1.0, 0.5, 1.0, 0.0],  # Month 2
    # ... more months
])

log = BehaviorLog(
    cost_vectors=prices,
    action_vectors=quantities,
    user_id="household_123"
)

print(f"Observations: {log.num_records}")  # 24
print(f"Products: {log.num_goods}")        # 10

Output:

Observations: 24
Products: 10

Price Imputation#

For zero-purchase categories, impute prices using market medians:

def build_behavior_log(transactions_df, household_id, categories, price_oracle):
    """Transform transactions to BehaviorLog format."""
    hh_df = transactions_df[transactions_df['household_id'] == household_id]
    hh_df['period'] = hh_df['date'].dt.to_period('M')

    # Build quantity matrix
    quantities = hh_df.pivot_table(
        index='period',
        columns='category',
        values='quantity',
        aggfunc='sum',
        fill_value=0
    )

    # Build price matrix: user's price if purchased, oracle otherwise
    prices = pd.DataFrame(index=quantities.index, columns=categories)
    for period in quantities.index:
        for cat in categories:
            if quantities.loc[period, cat] > 0:
                mask = (hh_df['period'] == period) & (hh_df['category'] == cat)
                prices.loc[period, cat] = hh_df[mask]['price'].median()
            else:
                prices.loc[period, cat] = price_oracle.loc[period, cat]

    return BehaviorLog(
        cost_vectors=prices.values,
        action_vectors=quantities.values,
        user_id=household_id
    )

Part 3: Testing Consistency (GARP)#

The Generalized Axiom of Revealed Preference (GARP) tests whether choices can be explained by a utility function. Choosing bundle A when B was affordable reveals A ≿ B. GARP checks whether these revealed preferences form a consistent (acyclic) ordering.

from prefgraph import validate_consistency

# Test a single household
result = validate_consistency(log)

if result.is_consistent:
    print("GARP satisfied - a utility function exists")
else:
    print(f"GARP violated - {result.num_violations} contradictions found")

Output (typical for one household):

GARP violated - 18 contradictions found

Full Summary Report#

For detailed diagnostics, use the .summary() method:

print(result.summary())

================================================================================
                            GARP CONSISTENCY REPORT
================================================================================

Status: CONSISTENT

Metrics:
-------
  Consistent ......................... Yes
  Violations ........................... 0
  Observations ......................... 2

Interpretation:
--------------
  Behavior is consistent with utility maximization.
  No revealed preference cycles detected.

Computation Time: 0.23 ms
================================================================================

Testing All Households#

consistent_count = 0
for household_id, session_data in sessions.items():
    result = validate_consistency(session_data.behavior_log)
    if result.is_consistent:
        consistent_count += 1

total = len(sessions)
print(f"GARP pass rate: {consistent_count}/{total} ({100*consistent_count/total:.1f}%)")

Output:

GARP pass rate: 100/2222 (4.5%)

Typical GARP pass rates for field data range from 5-15%, reflecting assumption violations over long time horizons (see Important Assumptions).

Part 3a: Lenient Consistency (Acyclical P)#

When GARP fails, it may be due to strict preference cycles or merely weak preference violations. The Acyclical P test distinguishes these cases by only checking strict preferences.

from prefgraph import validate_strict_consistency

result = validate_strict_consistency(log)

if result.is_consistent:
    if result.garp_consistent:
        print("Fully GARP consistent")
    else:
        print("Approximately rational: only weak preference violations")
else:
    print(f"Strict preference cycles found: {len(result.violations)}")

Output (typical household that fails GARP):

Approximately rational: only weak preference violations

Interpretation#

Acyclical P vs GARP#
Scenario	GARP	Acyclical P
Strict preference cycles	Fails	Fails
Only weak violations	Fails	Passes
No violations	Passes	Passes

Use this test when:

GARP fails narrowly and you want to know if violations are “close calls”
You believe bundles at similar expenditure levels may be indifferent
You want to allow for small measurement error in prices/quantities

# Detailed analysis
print(f"Strict preferences: {result.num_strict_preferences}")
print(f"GARP would pass: {result.garp_consistent}")

if result.violations:
    print(f"Strict cycle example: {result.violations[0]}")

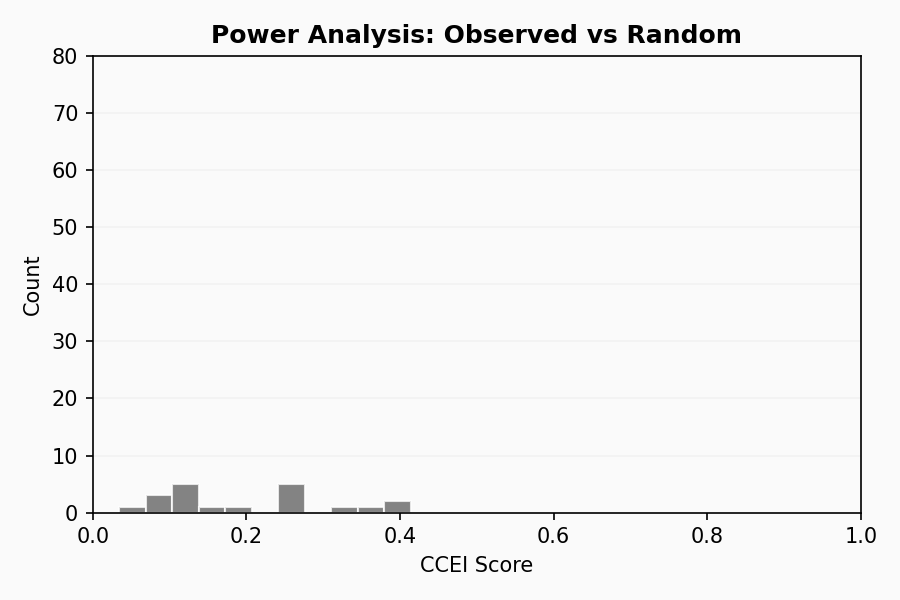

Part 4: Assessing Test Power#

The Bronars (1987) test assesses whether GARP has discriminative power by simulating random behavior on the same budgets and measuring violation rates.

from prefgraph import compute_test_power

# Test power for a sample of households
power_scores = []
for household_id in sample_households:
    log = sessions[household_id].behavior_log
    result = compute_test_power(log, n_simulations=500)
    power_scores.append(result.power_index)

print(f"Mean Bronars power: {np.mean(power_scores):.3f}")

Output:

Mean Bronars power: 0.942

Interpreting Power#

Power Interpretation#
Power	Interpretation
> 0.90	Random behavior almost always violates GARP
0.70 - 0.90	GARP results are informative
0.50 - 0.70	Limited discriminative power
< 0.50	GARP cannot distinguish consistent from random behavior

With 24 observations and 10 goods, power typically exceeds 0.90.

Detailed Bronars Power Analysis#

For deeper analysis, use the full result object which includes simulation details:

from prefgraph import compute_test_power

result = compute_test_power(log, n_simulations=1000)

print(f"Power Index: {result.power_index:.3f}")
print(f"Statistically Significant: {result.is_significant}")
print(f"Random violations: {result.n_violations}/{result.n_simulations}")
print(f"Mean integrity of random: {result.mean_integrity_random:.3f}")

Output:

Power Index: 0.942
Statistically Significant: True
Random violations: 942/1000
Mean integrity of random: 0.723

The mean_integrity_random shows the average efficiency score (AEI/CCEI) of randomly generated behavior. If your household’s CCEI is much higher than this baseline, it strongly suggests non-random behavior.

For faster computation (without AEI tracking), use:

from prefgraph import compute_test_power_fast

result = compute_test_power_fast(log, n_simulations=5000)
print(f"Power: {result.power_index:.3f}")

Part 5: Measuring Efficiency (CCEI)#

The Critical Cost Efficiency Index (CCEI), also called the Afriat Efficiency Index, quantifies the degree of GARP violation. A CCEI of 1.0 indicates perfect consistency; lower values indicate larger budget adjustments needed to rationalize behavior.

from prefgraph import compute_integrity_score

ccei_scores = []
for household_id, session_data in sessions.items():
    result = compute_integrity_score(session_data.behavior_log)
    ccei_scores.append(result.efficiency_index)

print(f"Mean CCEI: {np.mean(ccei_scores):.3f}")
print(f"Median CCEI: {np.median(ccei_scores):.3f}")
print(f"CCEI ≥ 0.95: {np.mean(np.array(ccei_scores) >= 0.95)*100:.1f}%")
print(f"CCEI < 0.70: {np.mean(np.array(ccei_scores) < 0.70)*100:.1f}%")

Output:

Mean CCEI: 0.839
Median CCEI: 0.856
CCEI ≥ 0.95: 11.2%
CCEI < 0.70: 5.8%

Full Summary Report#

print(result.summary())

================================================================================
                         AFRIAT EFFICIENCY INDEX REPORT
================================================================================

Status: PERFECT (AEI = 1.0)

Metrics:
-------
  Efficiency Index (AEI) .......... 1.0000
  Waste Fraction .................. 0.0000
  Perfectly Consistent ............... Yes
  Binary Search Iterations ............. 0
  Tolerance ................... 1.0000e-06

Interpretation:
--------------
  Perfect consistency - behavior fully rationalized by utility maximization

Computation Time: 0.04 ms
================================================================================

Benchmark Comparison#

Dunnhumby vs. CKMS (2014) Lab Experiments#
Metric	Dunnhumby (Grocery)	CKMS (Lab)
GARP pass rate	~5-15%	22.8%
Mean CCEI	~0.80-0.85	0.881
Median CCEI	~0.85-0.90	0.95
CCEI ≥ 0.95	~20-30%	45.2%

Lower consistency in field data reflects measurement noise, longer time horizons, and multiple decision-makers per household.

CCEI Interpretation#

CCEI	Interpretation
1.00	GARP satisfied
0.95+	Minor deviations
0.85-0.95	Typical for field data
0.70-0.85	Substantial deviations
< 0.70	Large deviations; verify data quality

Part 6: Welfare Loss (MPI)#

The Money Pump Index (MPI) measures potential welfare loss from preference cycles (e.g., A ≻ B ≻ C ≻ A).

from prefgraph import compute_confusion_metric

mpi_scores = []
for household_id, session_data in sessions.items():
    result = compute_confusion_metric(session_data.behavior_log)
    mpi_scores.append(result.mpi_value)

print(f"Mean MPI: {np.mean(mpi_scores):.3f}")

Output:

Mean MPI: 0.218

Full Summary Report#

print(result.summary())

================================================================================
                            MONEY PUMP INDEX REPORT
================================================================================

Status: NO EXPLOITABILITY

Metrics:
-------
  Money Pump Index (MPI) .......... 0.0000
  Exploitability % ................ 0.0000
  Number of Cycles ..................... 0
  Total Expenditure .............. 31.7500

Interpretation:
--------------
  No exploitability - choices are fully consistent

Computation Time: 0.02 ms
================================================================================

Mean MPI in this data is 0.2-0.25, with strong negative correlation to CCEI (r ≈ -0.85).

MPI Interpretation#
MPI	Interpretation
0	No preference cycles
0.1-0.2	Minor cycles
0.2-0.3	Moderate cycles
> 0.3	Substantial cycles

Houtman-Maks Index#

The Houtman-Maks Index measures the minimum fraction of observations to remove for GARP consistency.

from prefgraph import compute_minimal_outlier_fraction

result = compute_minimal_outlier_fraction(log)
print(f"Observations to remove: {result.fraction:.1%}")

Output (typical household):

Observations to remove: 12.5%

Full Summary Report#

print(result.summary())

================================================================================
                           HOUTMAN-MAKS INDEX REPORT
================================================================================

Status: FULLY CONSISTENT

Metrics:
-------
  Fraction Removed ................ 0.0000
  Fraction Consistent ............. 1.0000
  Observations Removed ................. 0

Interpretation:
--------------
  All observations are consistent - no removal needed.

Computation Time: 0.05 ms
================================================================================

CCEI, MPI, and Houtman-Maks capture different aspects of inconsistency.

Part 6a: Per-Observation Efficiency (VEI)#

While CCEI gives a single global efficiency score, Varian’s Efficiency Index (VEI) computes individual efficiency scores for each observation. This identifies which specific observations are problematic.

from prefgraph import compute_granular_integrity

result = compute_granular_integrity(log, efficiency_threshold=0.9)

print(f"Mean efficiency: {result.mean_efficiency:.3f}")
print(f"Worst observation: {result.worst_observation}")
print(f"Min efficiency: {result.min_efficiency:.3f}")
print(f"Problematic observations: {result.problematic_observations}")

Output:

Mean efficiency: 0.912
Worst observation: 14
Min efficiency: 0.723
Problematic observations: [7, 14, 21]

Use Cases#

Debugging: Find which time periods have inconsistent behavior
Outlier detection: Identify transactions to investigate
Time series analysis: Track when behavior changed
Data quality: Detect measurement errors or unusual events

# Investigate problematic observations
for obs_idx in result.problematic_observations:
    efficiency = result.efficiency_vector[obs_idx]
    print(f"Observation {obs_idx}: efficiency={efficiency:.3f}")
    print(f"  Prices: {log.cost_vectors[obs_idx]}")
    print(f"  Quantities: {log.action_vectors[obs_idx]}")

L2 Variant#

For applications where large deviations matter more than small ones, use the L2 variant which minimizes squared deviations:

from prefgraph import compute_granular_integrity_l2

result_l2 = compute_granular_integrity_l2(log)
print(f"L2 mean efficiency: {result_l2.mean_efficiency:.3f}")

Part 6b: Swaps Index#

The Swaps Index (Apesteguia & Ballester 2015) provides a more interpretable measure of inconsistency than CCEI. Instead of asking “how much budget waste rationalizes behavior?”, it asks “how many preference reversals are needed?”

from prefgraph import compute_swaps_index

result = compute_swaps_index(log)

print(f"Swaps needed: {result.swaps_count}")
print(f"Normalized (0-1): {result.swaps_normalized:.3f}")
print(f"Consistent: {result.is_consistent}")

Output (typical household):

Swaps needed: 3
Normalized (0-1): 0.011
Consistent: False

Interpretation#

The swaps index is more intuitive than CCEI:

CCEI = 0.92 means “need 8% budget waste to rationalize”
Swaps = 3 means “need to flip 3 preference pairs for consistency”

Swaps Index Interpretation#
Swaps	Interpretation
0	GARP consistent
1-3	Near-rational (minor inconsistencies)
4-10	Moderate inconsistency
> 10	Substantial inconsistency; verify data quality

Identifying Which Pairs to Swap#

The result includes the specific observation pairs that cause violations:

if result.swap_pairs:
    print("Preferences to reverse for consistency:")
    for obs_i, obs_j in result.swap_pairs:
        print(f"  Observation {obs_i} vs {obs_j}")

This is useful for understanding where the inconsistencies occur-perhaps a few outlier periods drive all the violations.

Full Summary Report#

print(result.summary())

================================================================================
                             SWAPS INDEX REPORT
================================================================================

Status: INCONSISTENT (3 swaps needed)

Metrics:
-------
  Swaps Count .......................... 3
  Swaps Normalized ................. 0.0109
  Max Possible Swaps ................. 276
  Consistent ........................... No
  Method .......................... greedy

Swap Pairs:
----------
  (2, 14)
  (7, 21)
  (14, 19)

Interpretation:
--------------
  3 preference reversals needed for GARP consistency.
  This is a relatively low number, suggesting near-rational behavior.

Computation Time: 1.23 ms
================================================================================

Part 6c: Observation Contributions#

When GARP fails, which observations are responsible? Observation contributions (Varian 1990) identifies the “troublemakers”-useful for outlier detection and data quality analysis.

from prefgraph import compute_observation_contributions

result = compute_observation_contributions(log, method="cycle_count")

print(f"Base AEI: {result.base_aei:.3f}")
print(f"Most problematic observations:")
for obs_idx, contrib in result.worst_observations[:3]:
    print(f"  Observation {obs_idx}: {contrib:.1%} of violations")

Output:

Base AEI: 0.856
Most problematic observations:
  Observation 14: 23.5% of violations
  Observation 7: 18.2% of violations
  Observation 21: 12.8% of violations

Methods#

Two methods are available:

Contribution Methods#
Method	Speed	Use When
`"cycle_count"`	Fast (O(n²))	Large datasets, quick diagnostics
`"removal"`	Slow (O(n³))	Small datasets, precise impact measurement

The "removal" method computes how much AEI improves when each observation is removed-this gives a direct measure of each observation’s impact:

result = compute_observation_contributions(log, method="removal")

print(f"Removal impact on AEI:")
for obs_idx, impact in list(result.removal_impact.items())[:3]:
    print(f"  Remove obs {obs_idx}: AEI improves by {impact:.3f}")

Use Cases#

Data quality: High-contribution observations may reflect measurement error
Outlier detection: Unusual shopping periods (holidays, stockpiling)
Time series analysis: Identify when preferences shifted
Sample selection: Remove problematic observations for cleaner analysis

# Investigate the worst observation
worst_idx = result.worst_observations[0][0]
print(f"Observation {worst_idx} details:")
print(f"  Prices: {log.cost_vectors[worst_idx]}")
print(f"  Quantities: {log.action_vectors[worst_idx]}")
print(f"  Expenditure: ${np.dot(log.cost_vectors[worst_idx], log.action_vectors[worst_idx]):.2f}")

Full Summary Report#

print(result.summary())

================================================================================
                       OBSERVATION CONTRIBUTIONS REPORT
================================================================================

Status: ANALYSIS COMPLETE

Overview:
--------
  Total Observations .................. 24
  Base AEI ......................... 0.8560
  Method ...................... cycle_count

Worst Contributors:
------------------
  Observation 14 ................... 23.5%
  Observation 7 .................... 18.2%
  Observation 21 ................... 12.8%
  Observation 3 ..................... 8.4%
  Observation 18 .................... 7.1%

Interpretation:
--------------
  Top 3 observations account for 54.5% of all violation participation.
  Consider investigating these periods for data quality issues or
  unusual purchasing patterns.

Computation Time: 2.45 ms
================================================================================

Part 7: Advanced Topics#

For more complex budget-based analysis, see the following specialized tutorials:

Tutorial 1a: Advanced Budget Analysis - Homotheticity, Lancaster characteristics model, and utility recovery.

Part 8: Unified Summary Display#

For comprehensive analysis in one command, use the BehavioralSummary class which runs all tests and presents results in a unified format.

One-Liner Analysis#

from prefgraph import BehavioralSummary

# Run all tests with one command
summary = BehavioralSummary.from_log(log)

# Statsmodels-style text summary
print(summary.summary())

Output:

============================================================
                   BEHAVIORAL SUMMARY
============================================================

Data:
-----
  Observations ............................ 24
  Goods ................................... 10

Consistency Tests:
------------------
  GARP ............................ [+] PASS
  WARP ............................ [+] PASS
  SARP ............................ [+] PASS

Goodness-of-Fit:
----------------
  Afriat Efficiency (AEI) .......... 0.9500
  Money Pump Index (MPI) ........... 0.0200

Interpretation:
---------------
  Excellent consistency - minor noise or measurement error

Computation Time: 145.32 ms
============================================================

Quick Status Indicators#

For quick status checks, use short_summary():

# Quick one-liner status
print(summary.short_summary())
# Output: BehavioralSummary: [+] AEI=0.9500, MPI=0.0200

# Individual results also have short summaries
from prefgraph import validate_consistency, compute_integrity_score

garp = validate_consistency(log)
print(garp.short_summary())
# Output: GARP: [+] CONSISTENT

aei = compute_integrity_score(log)
print(aei.short_summary())
# Output: AEI: [+] 0.9500 (Excellent)

Note

In Jupyter notebooks, results display as styled HTML cards automatically. Just evaluate a result object in a cell to see rich formatting:

>>> result = validate_consistency(log)
>>> result  # Displays as HTML card with pass/fail indicator

Part 9: Diagnostic Visualizations#

PrefGraph includes visualization functions for deeper analysis of behavioral consistency. These are useful for presentations, reports, and debugging.

CCEI Sensitivity Plot#

The plot_ccei_sensitivity() function shows how the efficiency index (CCEI/AEI) improves as problematic observations are removed:

from prefgraph.viz import plot_ccei_sensitivity
import matplotlib.pyplot as plt

# How does AEI change as outliers are removed?
fig, ax = plot_ccei_sensitivity(log, max_remove=5)
plt.title("CCEI Sensitivity: Impact of Outlier Removal")
plt.show()

This visualization helps identify:

How many observations drive inconsistencies
The marginal improvement from removing each outlier
Whether a few observations cause most violations

Power Analysis Plot#

Power analysis - random CCEI distribution building up with observed score

The plot_power_analysis() function compares your data’s efficiency to simulated random behavior:

from prefgraph.viz import plot_power_analysis
import matplotlib.pyplot as plt

# Compare observed CCEI to random behavior
fig, ax = plot_power_analysis(log, n_simulations=500)
plt.title("Power Analysis: Observed vs Random Behavior")
plt.show()

This visualization shows:

Distribution of CCEI for random choices (histogram)
Your observed CCEI (vertical line)
How far above random your behavior is

If your observed CCEI is well above the random distribution, it strongly suggests non-random, preference-driven behavior.

Part 10: Summary#

Key Findings#

Metric	Typical Field Value
GARP pass rate	5-15%
Mean CCEI	0.80-0.85
Bronars power	>0.90
Mean MPI	0.2-0.25

Notes#

Compute power before interpreting GARP results
Report CCEI distribution, not just pass rates
Document aggregation choices
Compare to published benchmarks (e.g., CKMS 2014)

Function Reference#

Purpose	Function
GARP consistency	`validate_consistency()`
Strict consistency (Acyclical P)	`validate_strict_consistency()`
CCEI / efficiency index	`compute_integrity_score()`
Per-observation efficiency (VEI)	`compute_granular_integrity()`
Bronars power	`compute_test_power()`
Money Pump Index	`compute_confusion_metric()`
Houtman-Maks Index	`compute_minimal_outlier_fraction()`
Swaps Index	`compute_swaps_index()`
Observation Contributions	`compute_observation_contributions()`
Behavioral Summary	`BehavioralSummary.from_log()`

Tutorial 1: Budget-Based Analysis#

Prerequisites#

Important Assumptions#

What GARP Failure Means#

Part 1: The Data#

Aggregation Choice#

Part 2: Building BehaviorLogs#

Price Imputation#

Part 3: Testing Consistency (GARP)#

Full Summary Report#

Testing All Households#

Part 3a: Lenient Consistency (Acyclical P)#

Interpretation#

Part 4: Assessing Test Power#

Interpreting Power#

Detailed Bronars Power Analysis#

Part 5: Measuring Efficiency (CCEI)#

Full Summary Report#

Benchmark Comparison#

CCEI Interpretation#

Part 6: Welfare Loss (MPI)#

Full Summary Report#

Houtman-Maks Index#

Full Summary Report#

Part 6a: Per-Observation Efficiency (VEI)#

Use Cases#

L2 Variant#

Part 6b: Swaps Index#

Interpretation#

Identifying Which Pairs to Swap#

Full Summary Report#

Part 6c: Observation Contributions#

Methods#

Use Cases#

Full Summary Report#

Part 7: Advanced Topics#

Part 8: Unified Summary Display#

One-Liner Analysis#

Quick Status Indicators#

Part 9: Diagnostic Visualizations#

CCEI Sensitivity Plot#

Power Analysis Plot#

Part 10: Summary#

Key Findings#

Notes#

Function Reference#

See Also#
